| Model | JDD-500-940-HD |
| Wavelength | 940±5nm |
| Optical power | 3W |
| Illumination angle | Electric synchronous zoom,68°～1.5°continuous adjustable |
| Zoom Speed | 2.5S(optical, Wide-angle go to Tele-angle) |
| Illumination effect | Using the time integral homogenization technology, the full focal section filling light is uniform and delicate, without speckle completely |
| Effective distance | Tele-angle：Effective distance>500m |
| Control mode | Photosensitive sensor / Command |
| Brightness setting | Auto / Manual |
| Voltage | DC12V±10% |
| Total power | 9W |
| Storage temperature | -40℃～+80℃ |
| Work temperature | -40℃～+70℃ |
| Product life | >30000hours |

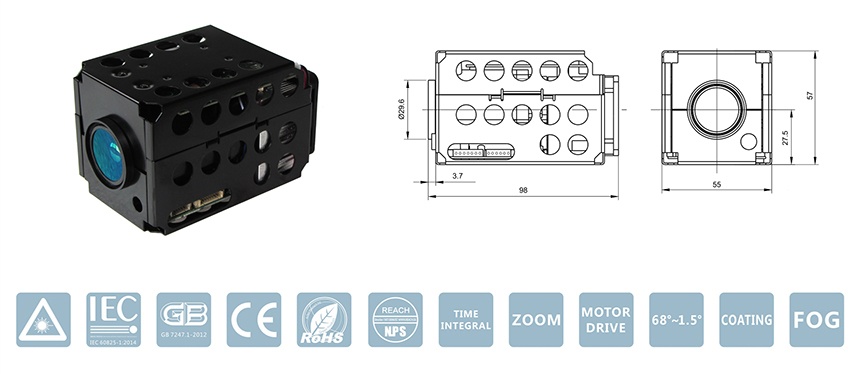

| Size | L x W x H：98*55*57mm |
| Weight | about250g |
| Communication mode | TTL 3.3V/ RS485（9600bps） |
